Gantry Style Shaftless Take-up for reels measuring 60” to 96” OD X 36” to 60” wide X up to 30,000 lbs. maximum weight capacity.
Includes:
Drive Systems – Main and Traverse
Optional AB Dual 5hp 480V 3-phase 60Hz AC Vector Tire Drive, Speed or Dancer Controlled Main Drive System 0-30 RPM with ability to run in speed, torque, or dancer-controlled operations.
Allen-Bradley Automatic Traverse Drive System for constant traverse speed to provide superior quality level-wind. The traverse speed is based on a material diameter of up to 3.00” maximum, digitally programmable traverse system.
Gantry Style Shaftless Take-up for reels measuring 60” to 96” OD X 36” to 60” wide X up to 30,000 lbs. maximum weight capacity.
Includes:
Drive Systems – Main and Traverse
Optional AB Dual 5hp 480V 3-phase
60Hz AC Vector Tire Drive, Speed
or Dancer Controlled Main Drive
System 0-30 RPM with ability to run
in speed, torque, or dancer-controlled
operations.
Allen-Bradley Automatic Traverse Drive
System for constant traverse speed to
provide superior quality level-wind. The
traverse speed is based on a material
diameter of up to 3.00” maximum,
digitally programmable traverse
system.
Products Overview
Features:
Heavy wall steel tubing superstructure
One set of hardened steel bolt-in type arbor adapters
End of Travel safety switches – proximity switches mounted on each leg over the floor rail to stop traverse travel should the unit overrun the floor rail, a (redundant safety feature).
Material Build-up Sensor – Ultrasonic Sensor automatically monitors build-up of material on the reel drum to automatically adjust the drive speed and tension.
Material Guide Stand – Floor-mounted roller guide stand includes adjustable vertical and fixed bottom horizontal rollers.

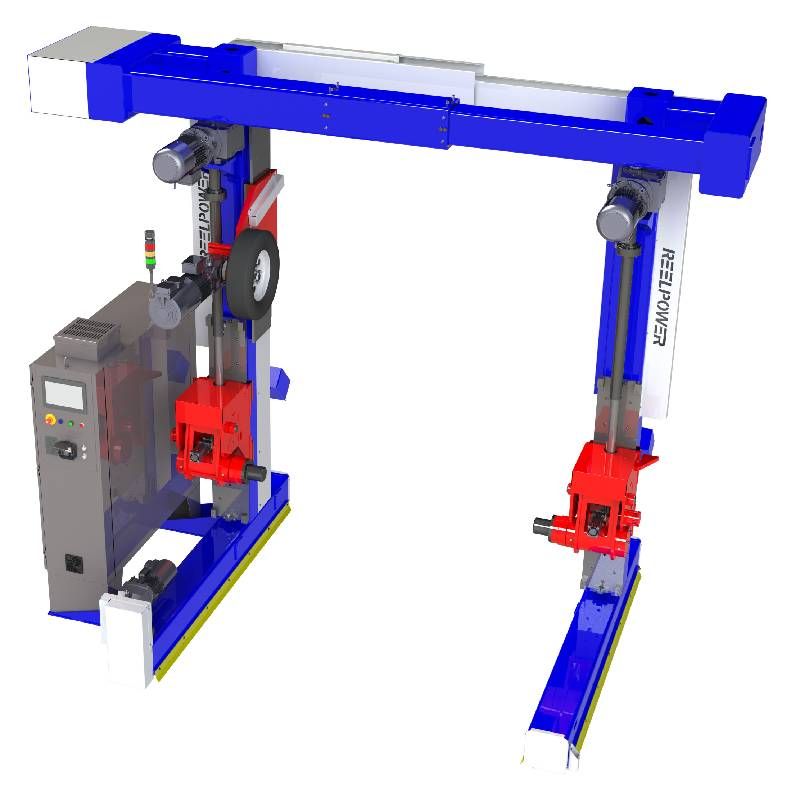

The GTU/GPO Gantry Style Take-up System is designed for smooth, even take-up of materials from fiber optic cables to electrical power cables. The GTU Series Gantry units offer easy reel loading and unloading with true walk-thru
capabilities.
The portal design conforms to the size of the reel, minimizing floor space requirements.
The entire unit traverses to allow take-up of material with Zero Fleeting Angle.
Option: Vertically conjured or overhead horizontally configured accumulator
